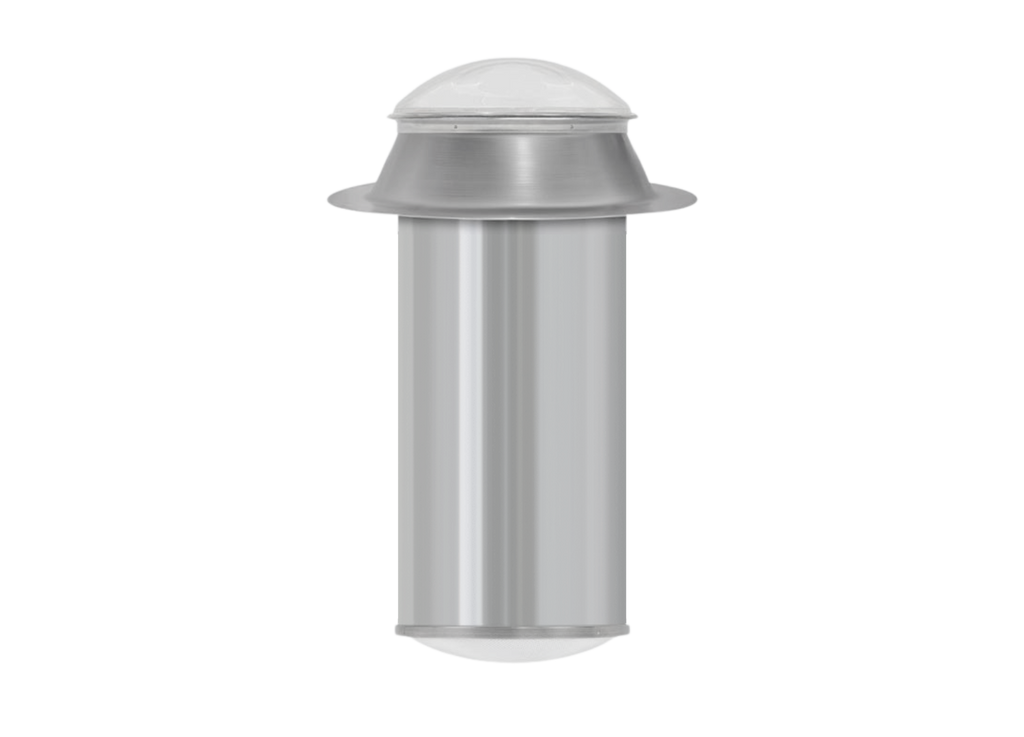

21 Inch Tubular Skylights

3,750.00 AED

by Natural Light Energy Systems - USA

Description
Product Details

Jedan Energy offers high-quality tubular skylights, also known as tubular solar or solar tunnel, that bring natural light into your home, office, warehouse, and more. Illuminate those hard-to-reach areas with our innovative solar tube technology.

1a:Acrylic Dome
100% impact modified, UV stabilized acrylic 22.75 inch (578mm) diameter and 5 inches (127mm) high. Dome set in seamless aluminum collar 1 inch (25mm) high. Overall diameter is 33.75 inches (857mm).

1b: Seamless Aluminum Flashing
Roof flashing made of seamless 1100 series grade aluminum .080 (2mm) inch thick. Dome opening 21.375 inch (543 mm) diameter. Overall diameter is 33.75 inches (857mm).

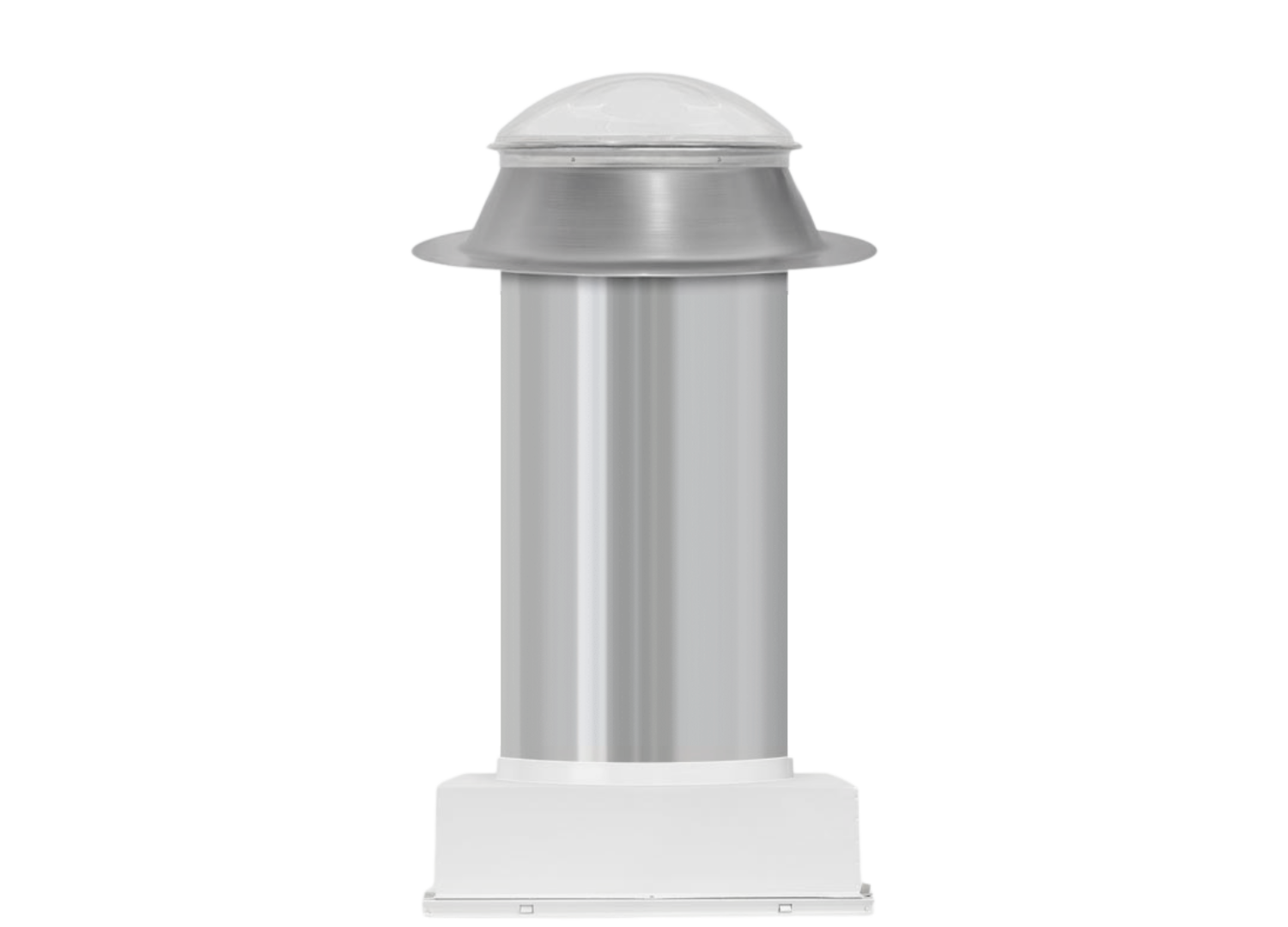

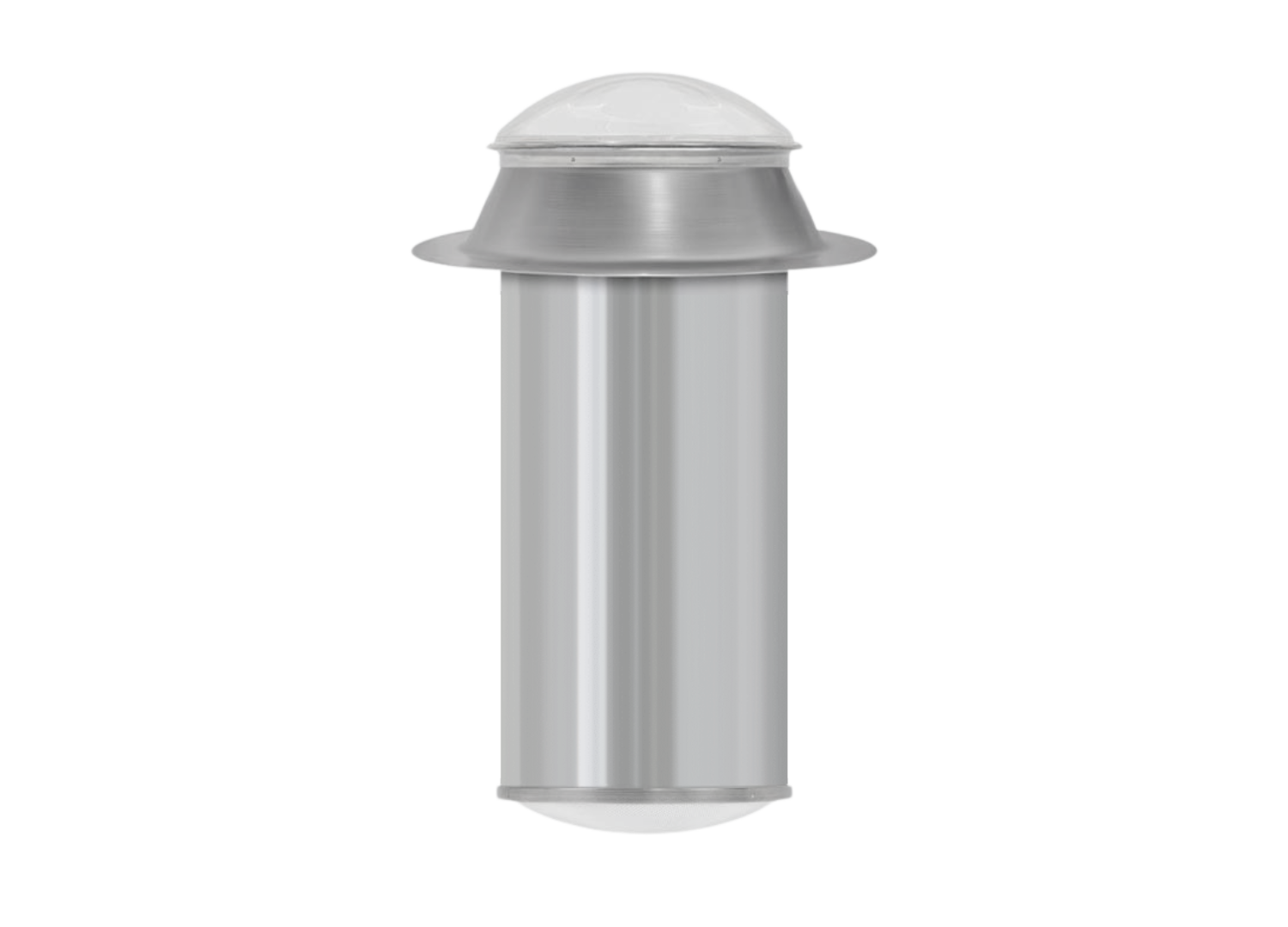

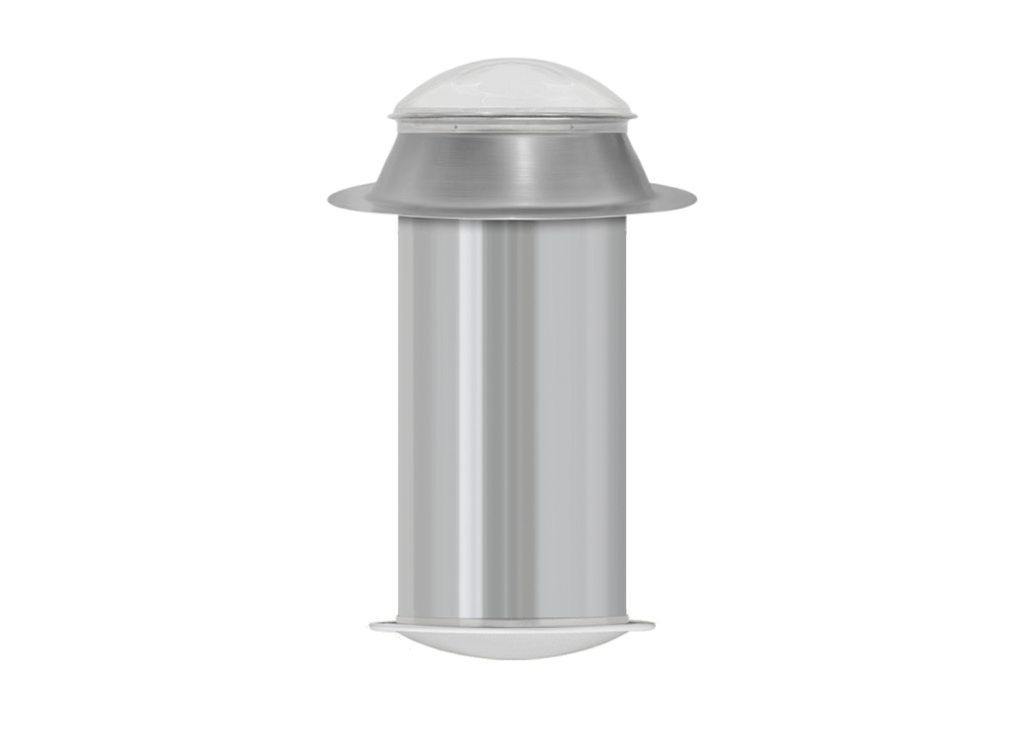

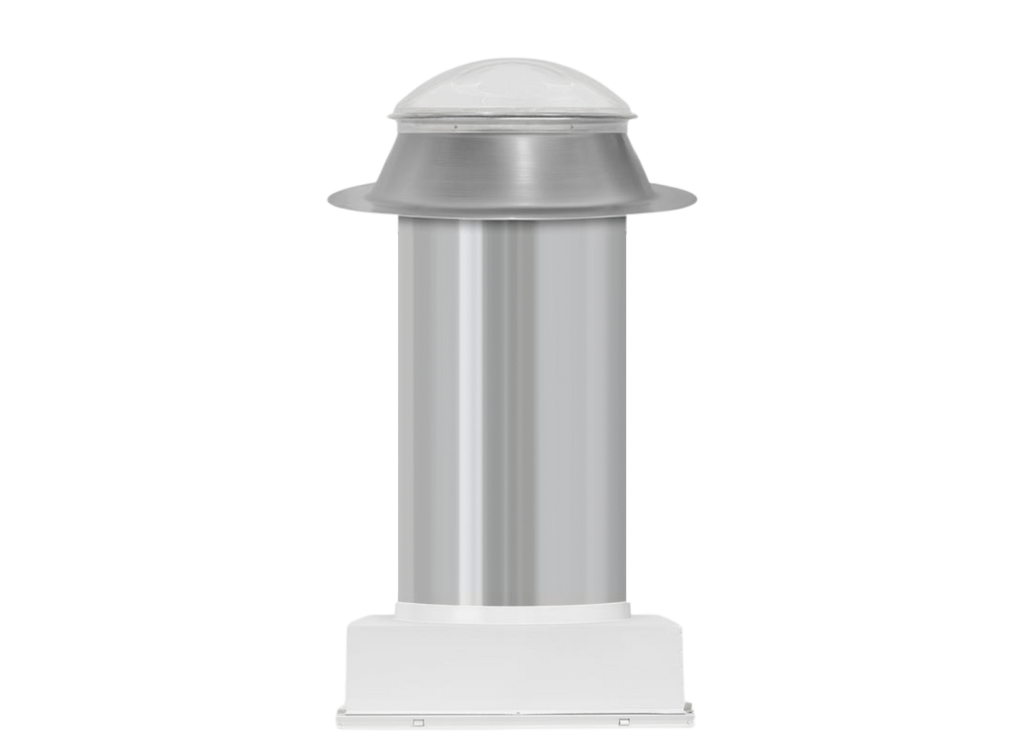

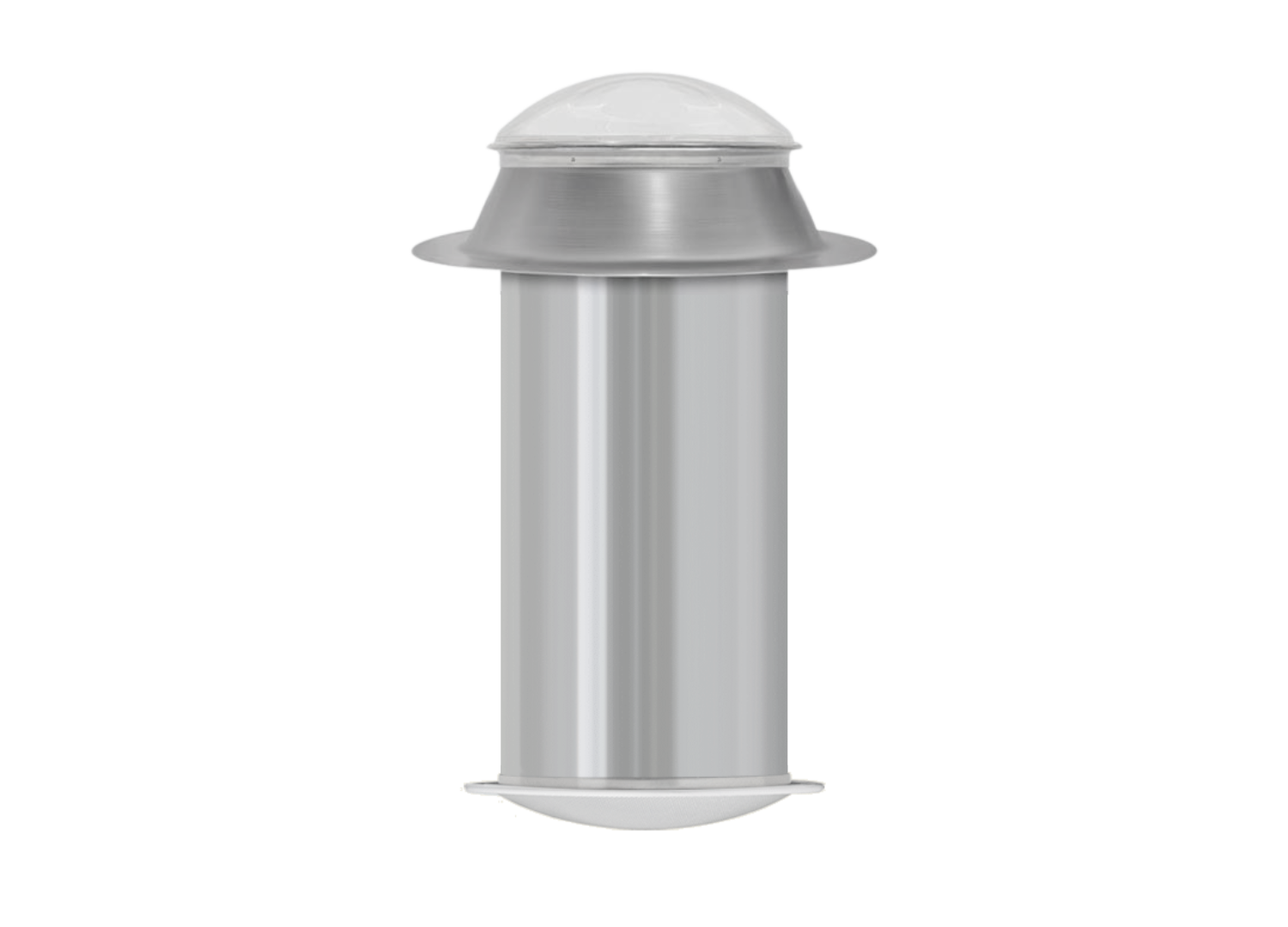

1. Flat roof mount. 8 inches (203 mm) high with a 4 inch (102 mm) flashing flange.

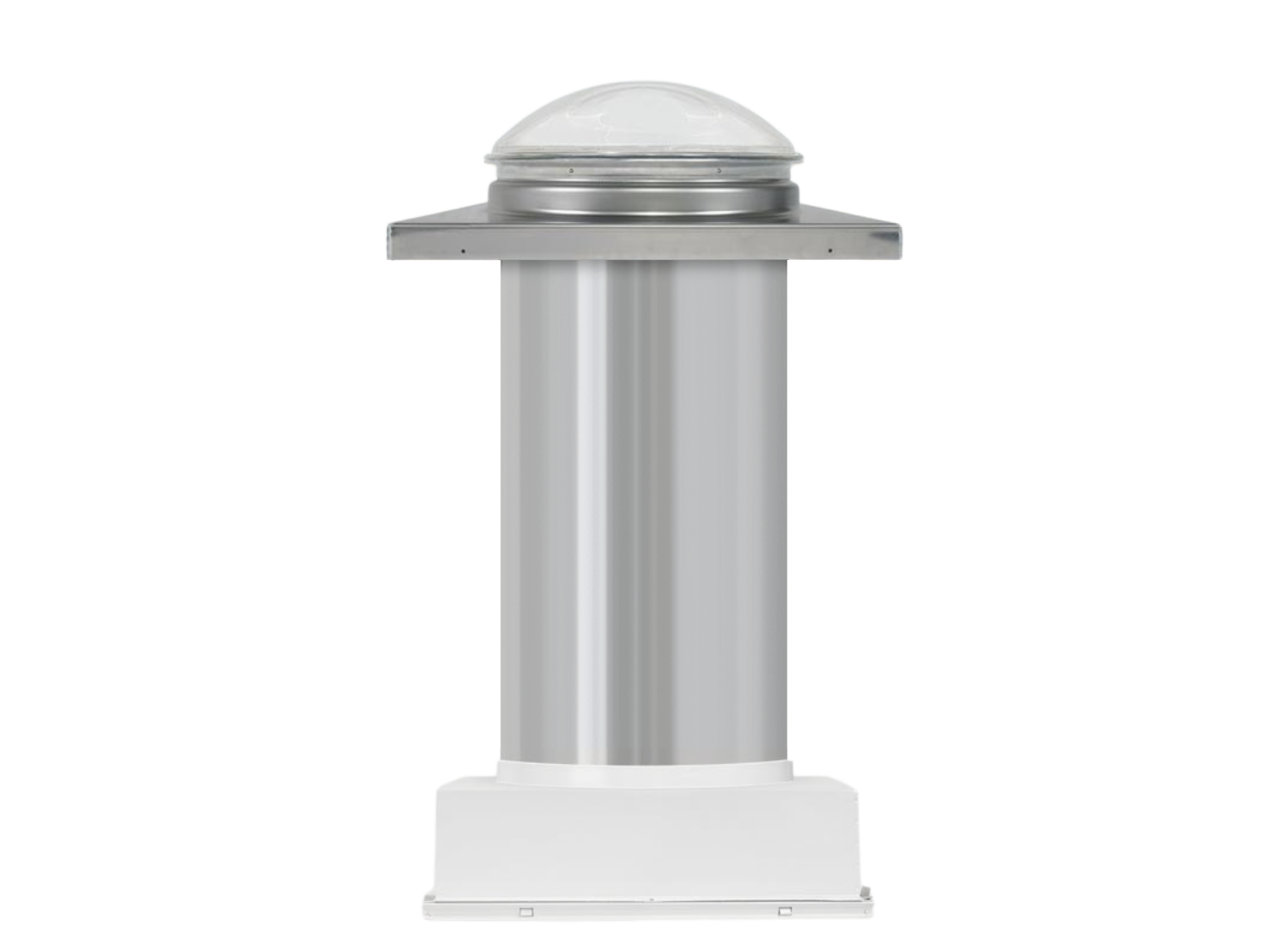

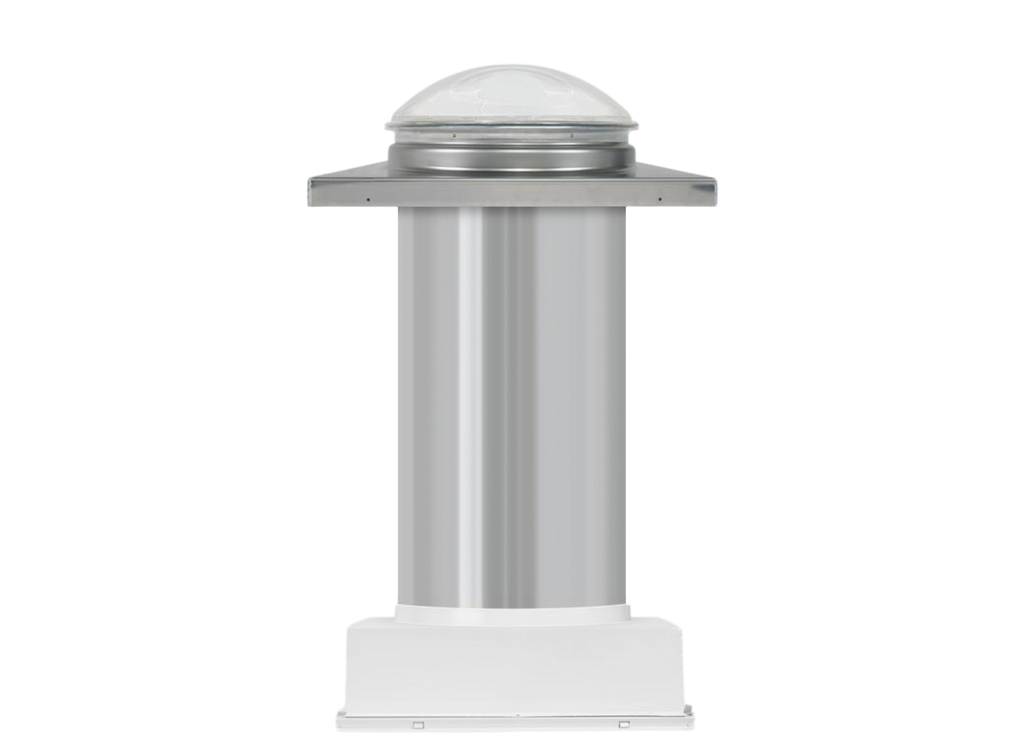

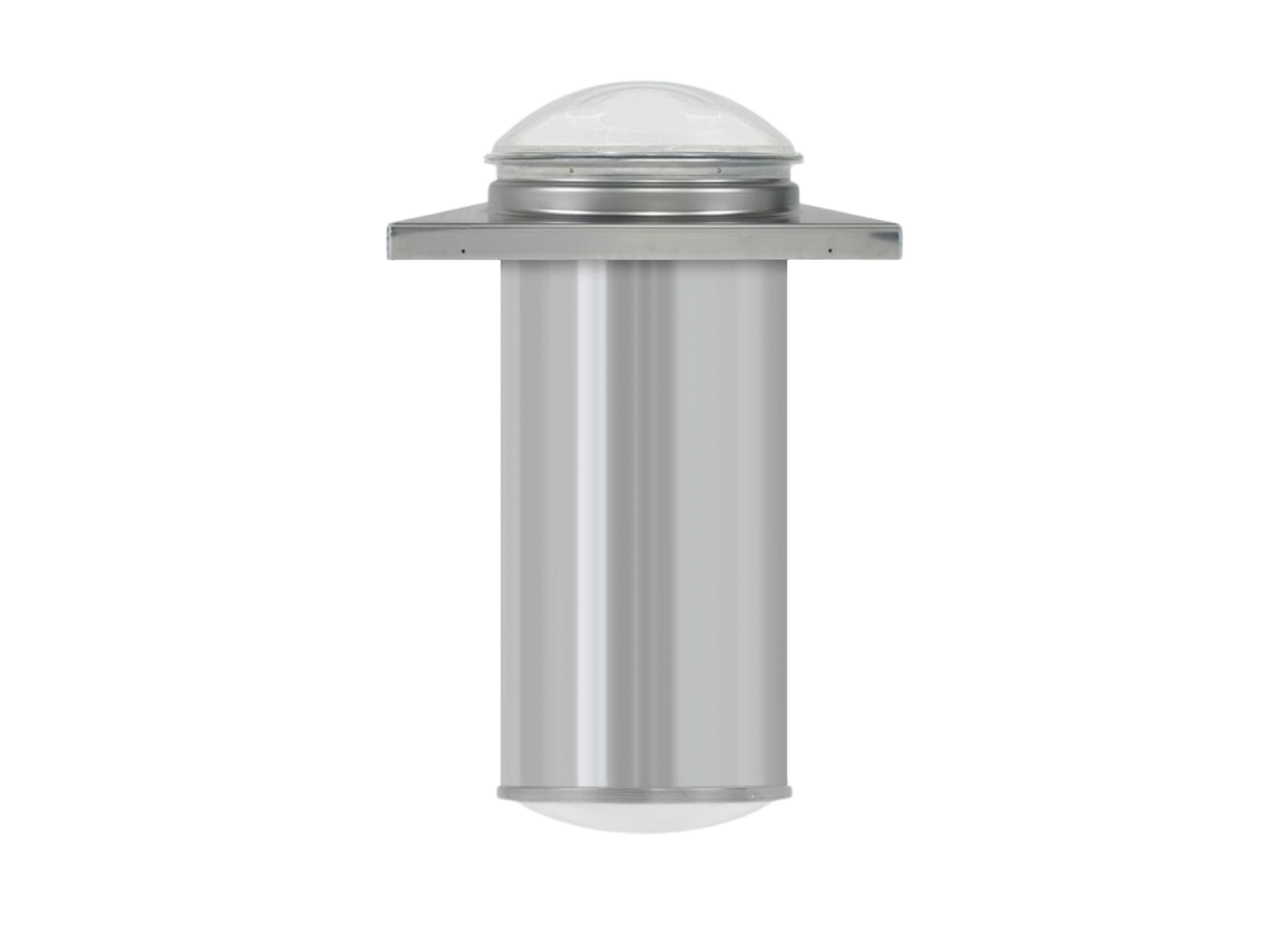

2. Curb mount. 28 inches (711mm) square curb with a 5.25 inches (133mm) rise and dome opening is 21.375 inches (543mm).

1c: Highly Reflective Light Pipe
21 inch (533 mm) diameter by 24 inches (610 mm) long. Alanod MIROSILVER with 98% total reflectance.

1d: Ceiling Trim Ring And Diffuser
100% impact modified, UV stabilized acrylic 21.25 inch (540 mm) diameter with snap in trim ring available in three options with snap in trim ring available in three options:

1. Prismatic
2. White

Light Output
Illuminates up to 700 sq. ft.
Equivalent of up to 1,450 watts

Performance Features:
May Qualify for Tax Credits
25 Year Product Warranty
Hurricane Tested/Approved
ICC-ES Listed

Common Application:
Commercial Offices
Retail Stores
Schools
Hospitals
Spas and Salons
Cafeterias
Industrial Kitchens
Community Centers

Download Installation Sheet

Download Info Sheet

Option

For Quantities above 20 units please contact us on the below link.

Why Tubular Is A Better Choice than Traditional Skylights

There are several advantages to installing a tubular skylight versus a traditional skylight in your home or office. They are particularly a better choice for smaller spaces like closets, hallways, laundry rooms and pantries where installing a traditional skylight would not be practical.

Tubular Skylight Advantages

Emits more light

More energy efficient

Diffuses incoming light

Eliminates UV rays

Side by Side Photos

Installation Cutaways

Installation procedures vary between the curb mount and flat roof models. Pictured are typical installations for both mounting types including all components and hardware. Please follow the detailed instructions for your model and roof type.
