Light Output
Illuminates up to 700 sq. ft.
Equivalent of up to 1,450 watts
Performance Features:
May Qualify for Tax Credits
25 Year Product Warranty
Hurricane Tested/Approved
ICC-ES Listed
Common Application:
Commercial Offices
Retail Stores
Schools
Hospitals
Spas and Salons
Cafeterias
Industrial Kitchens
Community Centers
1a:Acrylic Dome
100% impact modified, UV stabilized acrylic 22.75 inch (578mm) diameter and 5 inches (127mm) high. Dome set in seamless aluminum collar 1 inch (25mm) high. Overall diameter is 33.75 inches (857mm).
1b: Seamless Aluminum Flashing
Roof flashing made of seamless 1100 series grade aluminum .080 (2mm) inch thick. Dome opening 21.375 inch (543 mm) diameter. Overall diameter is 33.75 inches (857mm).

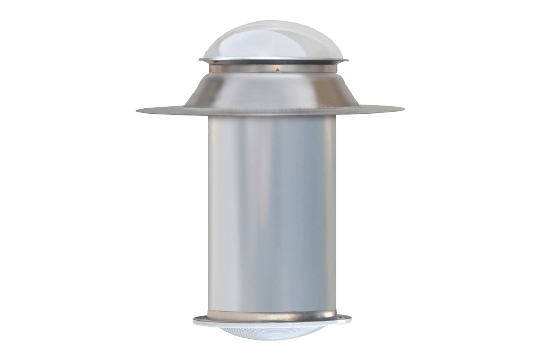

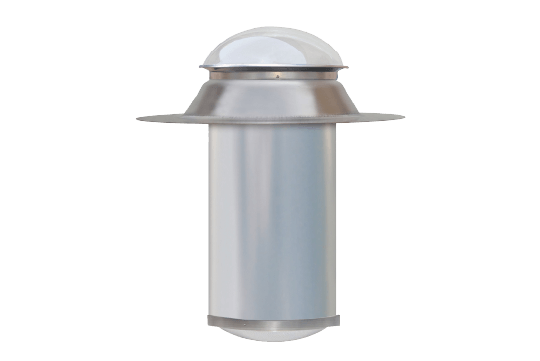

1. Flat roof mount. 8 inches (203 mm) high with a 4 inch (102 mm) flashing flange.

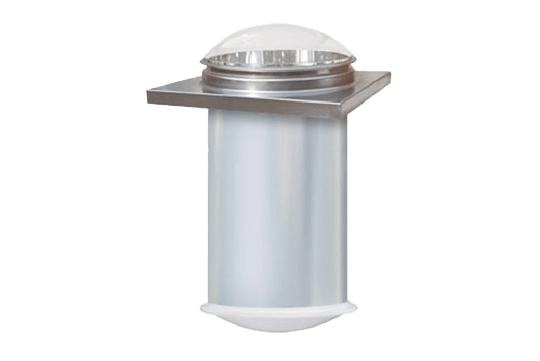

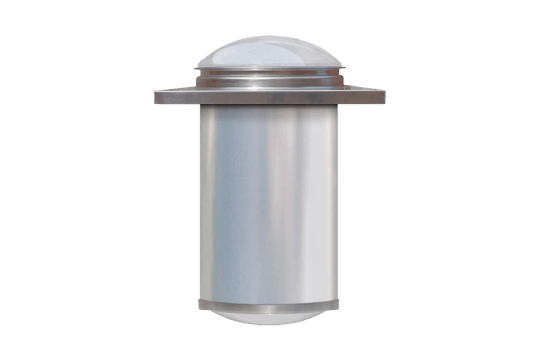

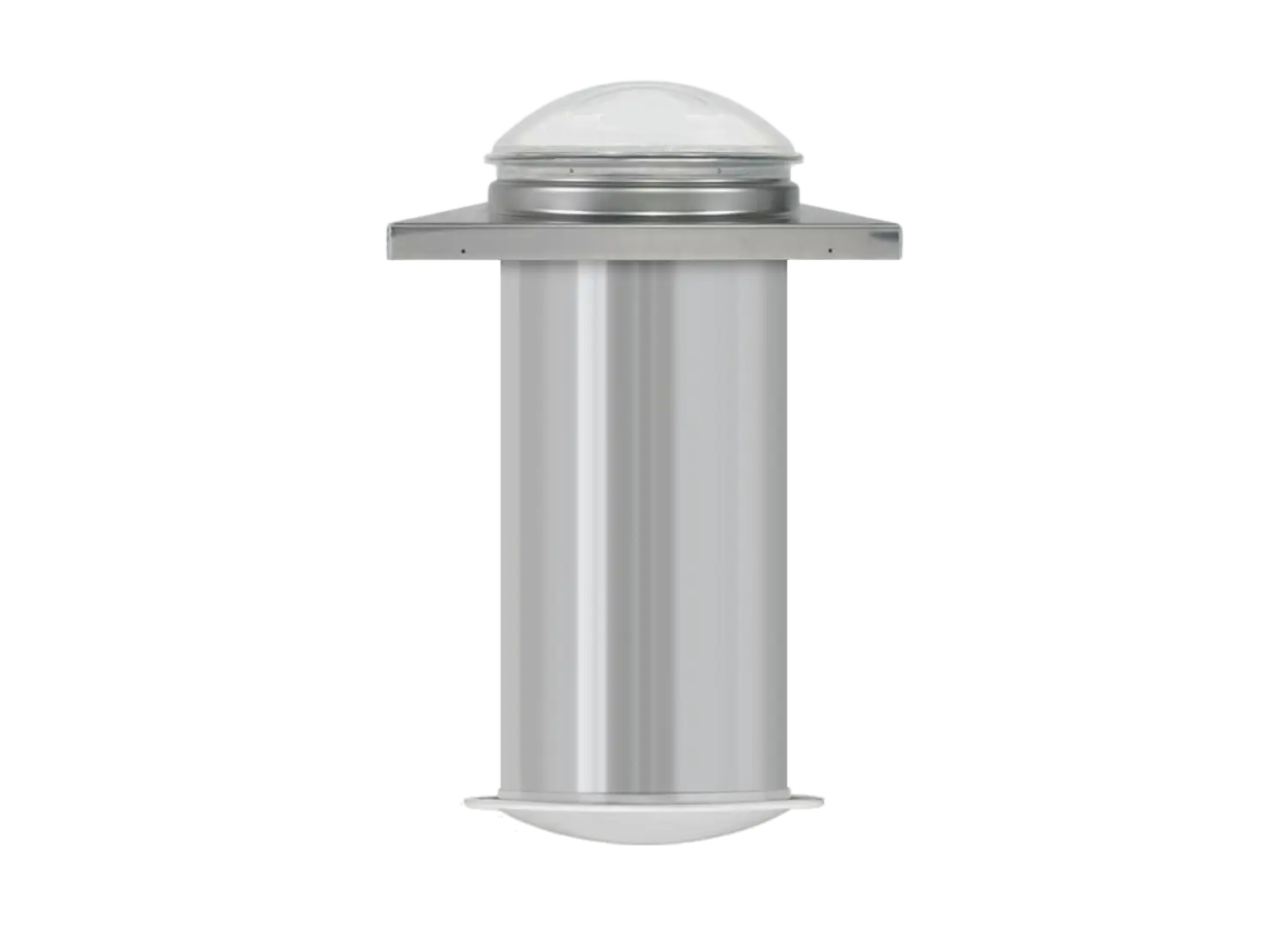

2. Curb mount. 28 inches (711mm) square curb with a 5.25 inches (133mm) rise and dome opening is 21.375 inches (543mm).
1c: Highly Reflective Light Pipe
21 inch (533 mm) diameter by 24 inches (610 mm) long. Alanod MIROSILVER with 98% total reflectance.
1d: Ceiling Trim Ring And Diffuser
100% impact modified, UV stabilized acrylic 21.25 inch (540 mm) diameter with snap in trim ring available in three options with snap in trim ring available in three options:
1. Prismatic
2. White
