Light Output
Illuminates up to 500 sq. ft.
Equivalent of up to 1000 watts
Performance Features:
May Qualify for Tax Credits
25 Year Product Warranty
Hurricane Tested/Approved
ICC-ES Listed
Common Application:
Master Bedrooms
Master Bathrooms
Large Kitchens
Large Family Rooms
Large Living Rooms
Large Garages
Commercial Offices
1a: Acrylic Dome
100% impact modified, UV stabilized acrylic 20.25 inch (514mm) diameter and 3.75 inches (95mm) high. Dome set in seamless aluminum collar 1 inch (25mm) high.
1b: Seamless Aluminum Flashing
Roof flashing made of seamless 1100 series grade aluminum .080 (2mm) inch thick. Dome opening 18.375 inch (467 mm) diameter.

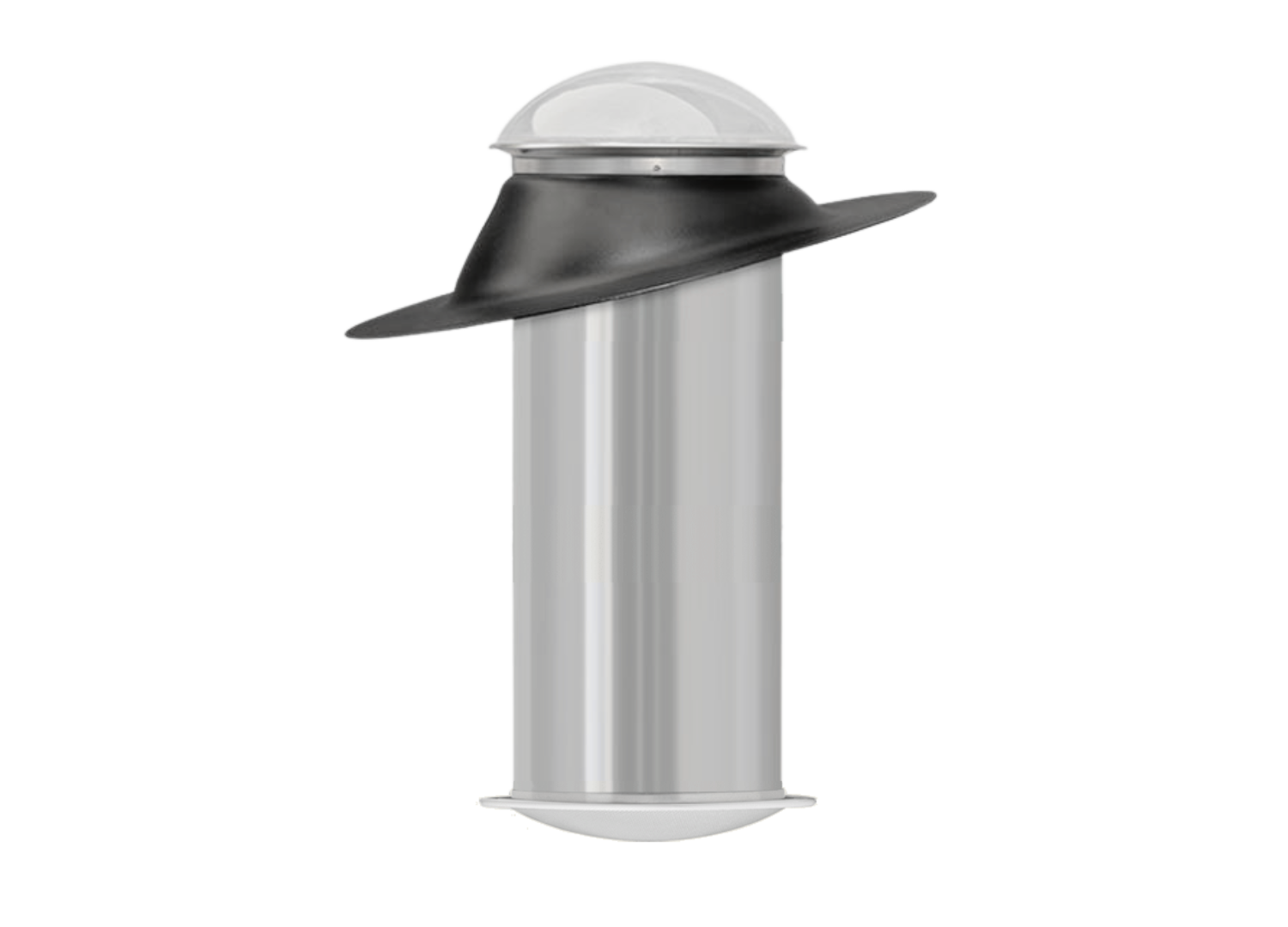

1. Sloped mount fabricated with a 4/12 (27 degree) slope. 9.75 inches (248 mm) high at low end, 4 inches (102 mm) high at high end with a 4 inch (102 mm) flashing flange.

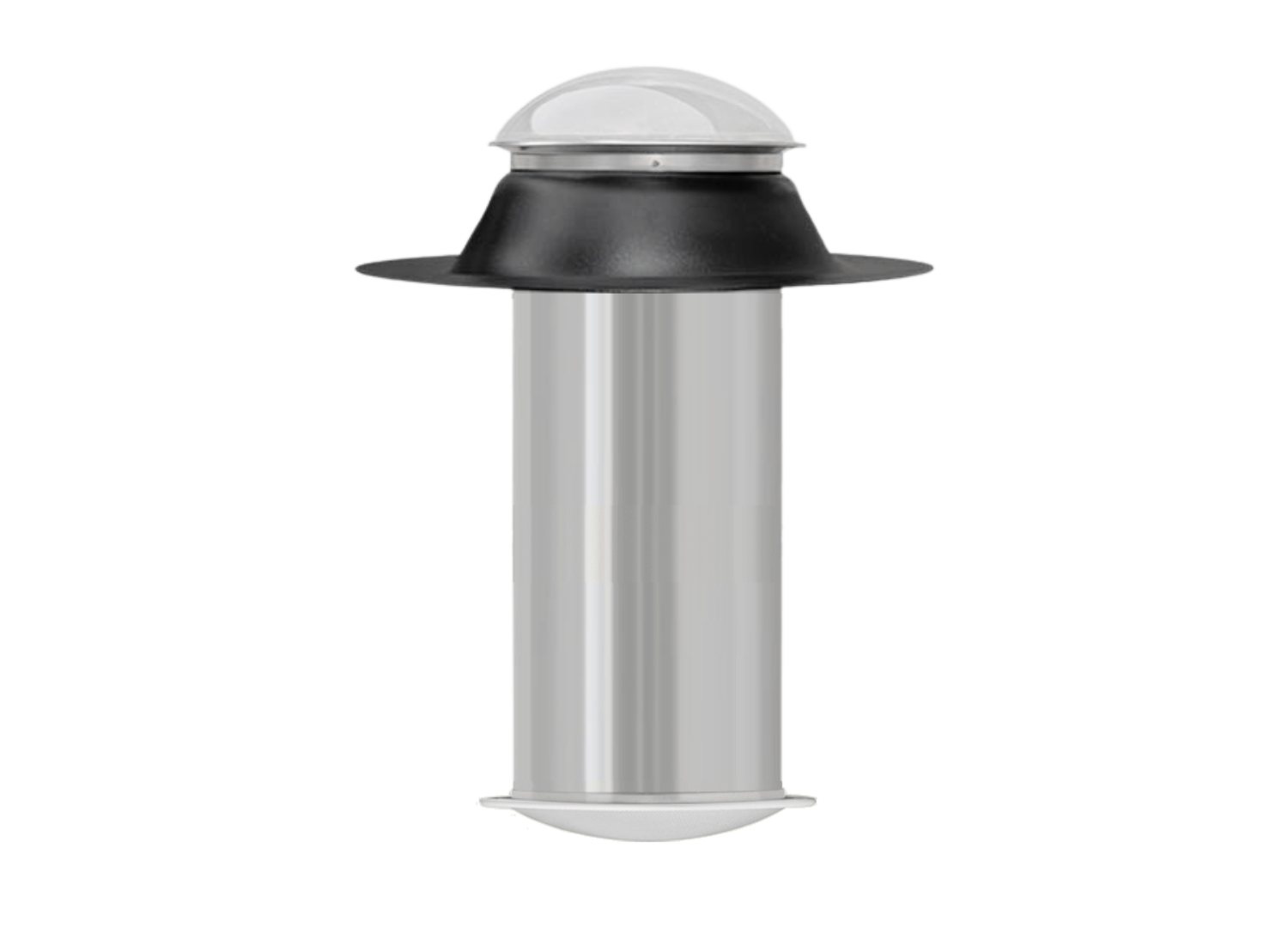

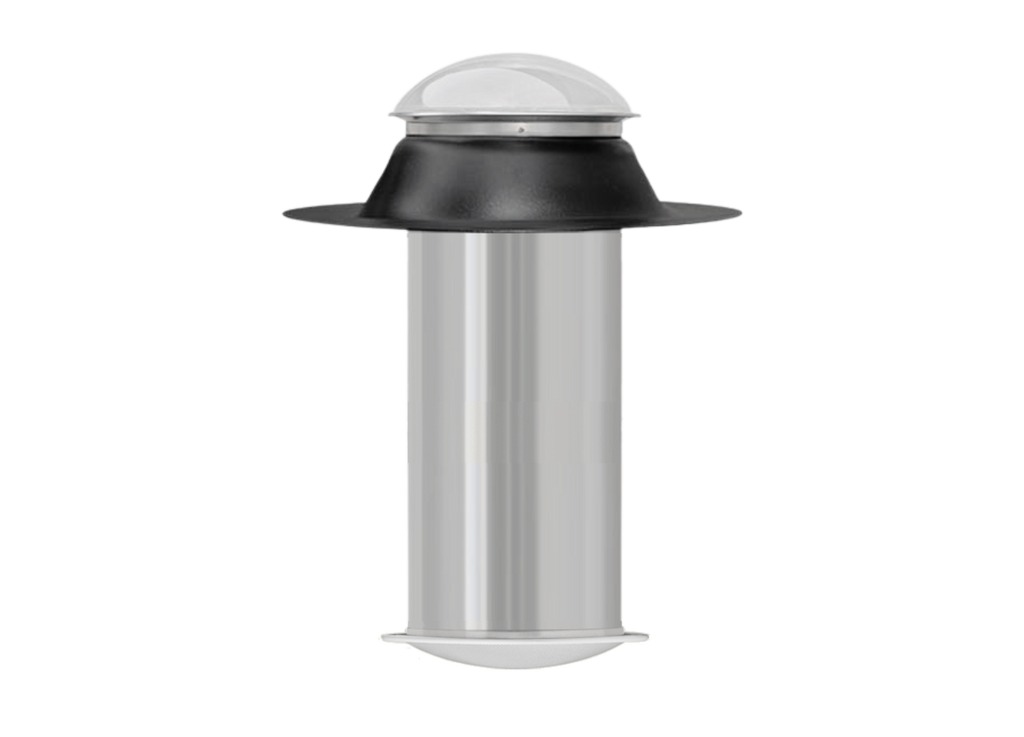

2. Flat roof mount. 5.5 inches (140 mm) high with a 4 inch (102 mm) flashing

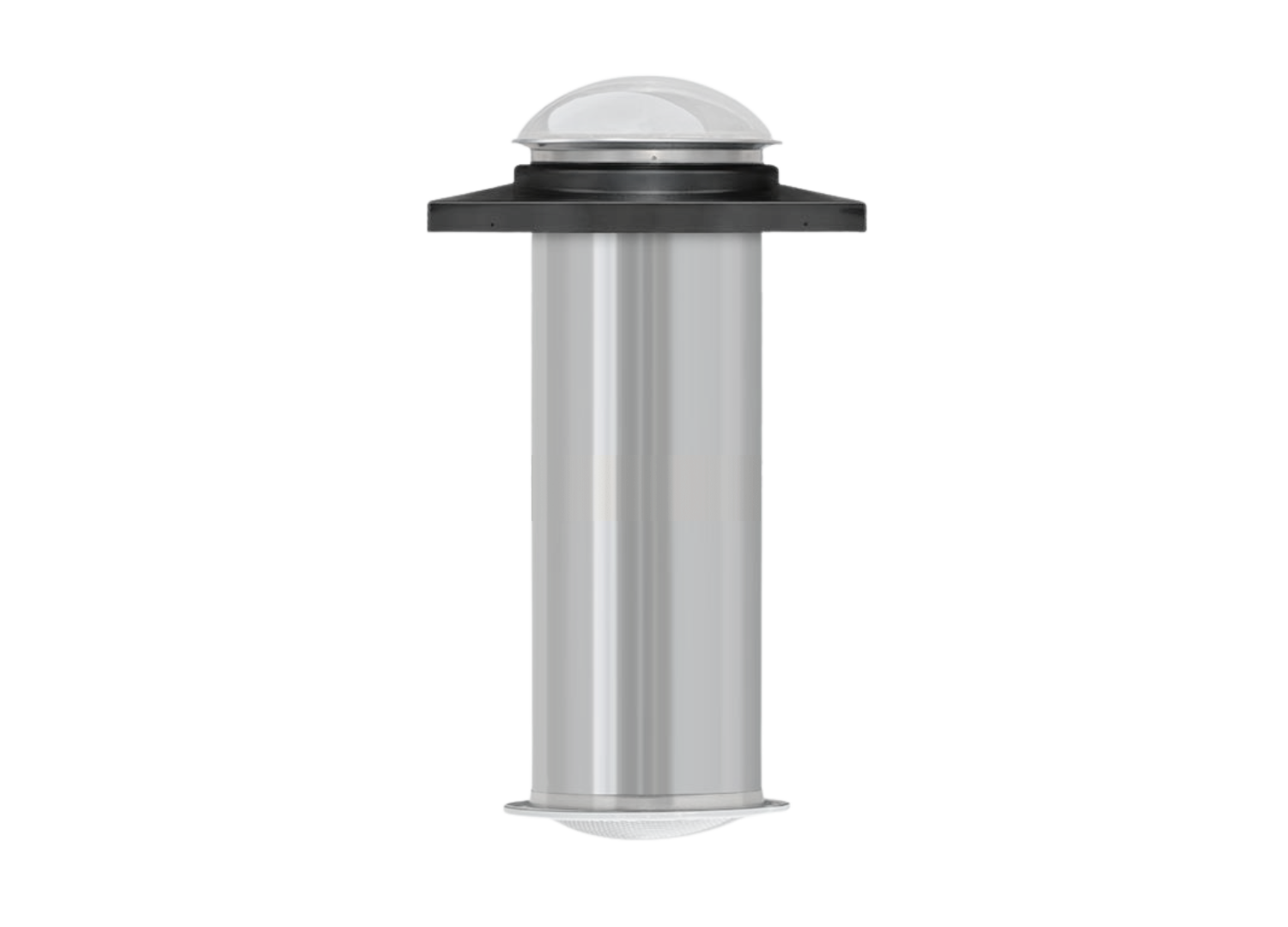

3. Curb mount. 25.187 inches (639mm) square curb with a 5.25 inches (133) rise and dome opening is 18.375 inches (467mm).
flange.
1c: Highly Reflective Light Pipe
18 inch (457 mm) diameter by 24 inches (610 mm) long. Alanod MIROSILVER with 98% total reflectance.
1d: Ceiling Trim Ring And Diffuser
100% impact modified, UV stabilized acrylic 18.25 inch (463 mm) diameter with snap in trim ring available in three options with snap in trim ring available in three options:
1. Prismatic
2. White
