Light Output
Illuminates up to 150 sq. ft.
Equivalent of up to 500 watts
Performance Features:
May Qualify for Tax Credits
25 Year Product Warranty
Hurricane Tested/Approved
ICC-ES Listed
Common Application:
Master Bedrooms
Master Bathrooms
Kitchens
Family Rooms
Living Rooms
Home Offices
Garages
Work Rooms
1a: Acrylic Dome
100% impact modified, UV stabilized acrylic 15.25 inch (387mm) diameter and 5.0 inches (127mm) rise. Dome set in seamless aluminum collar 1 inch (25mm) high.
1b: Seamless Aluminum Flashing
Roof flashing made of seamless 1100 series aluminum .080 (2mm) inch thick. Dome opening is 13.325 inches (339mm) diameter. Overall diameter is 26.5 inches (673mm).

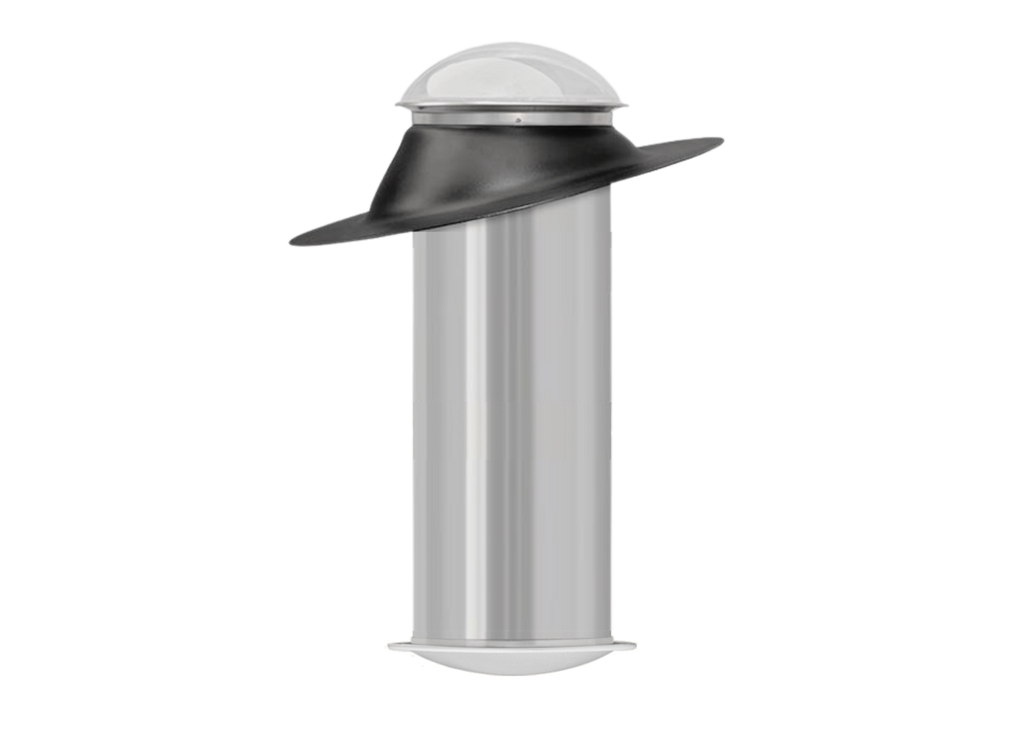

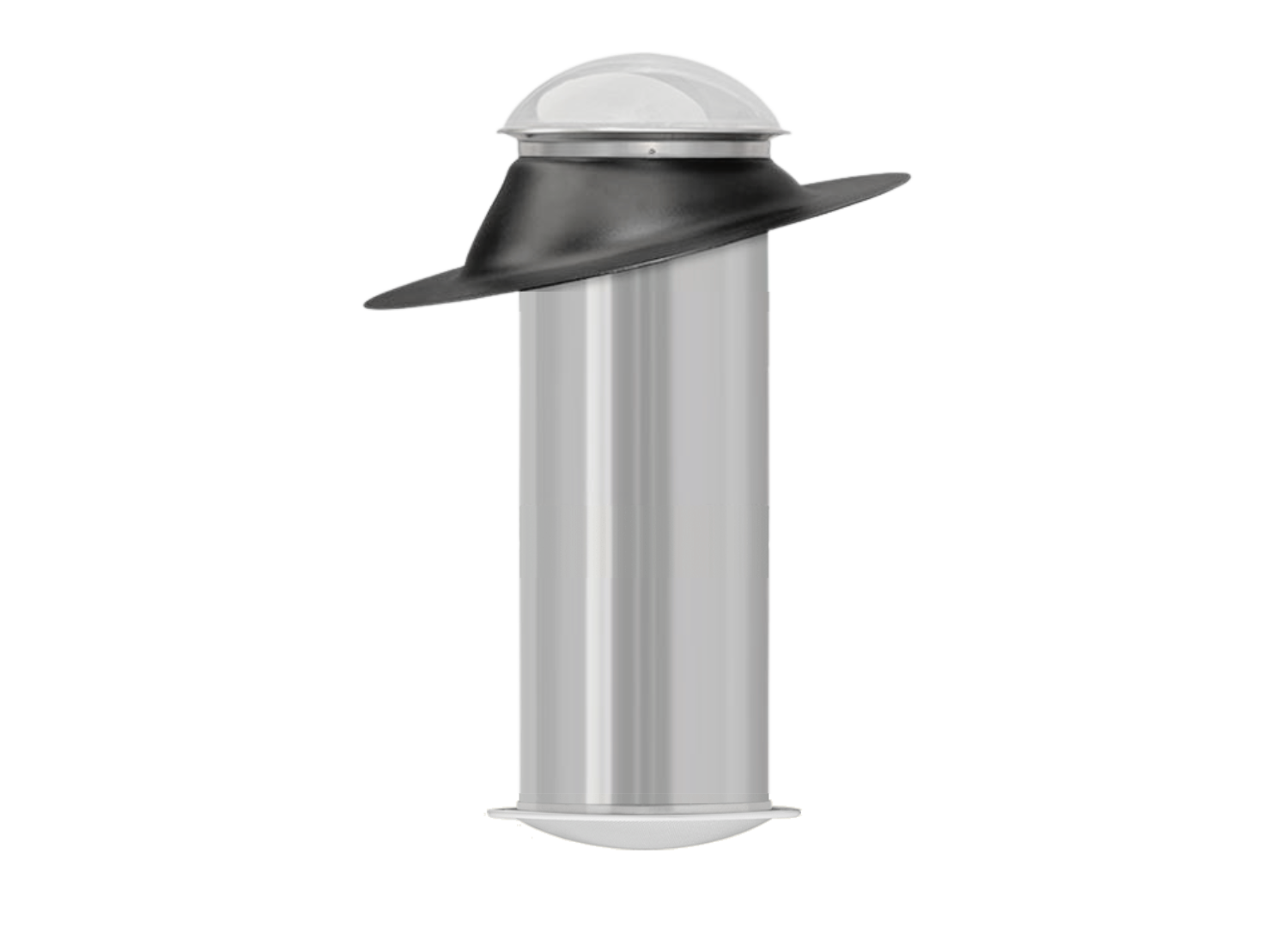

1. 1. Sloped mount fabricated with a 4/12 (27 degree) slope. 7.375 inches (171mm) high at low end, 4 inches (102 mm) high at high end with a 4 inch (102mm) flashing flange.

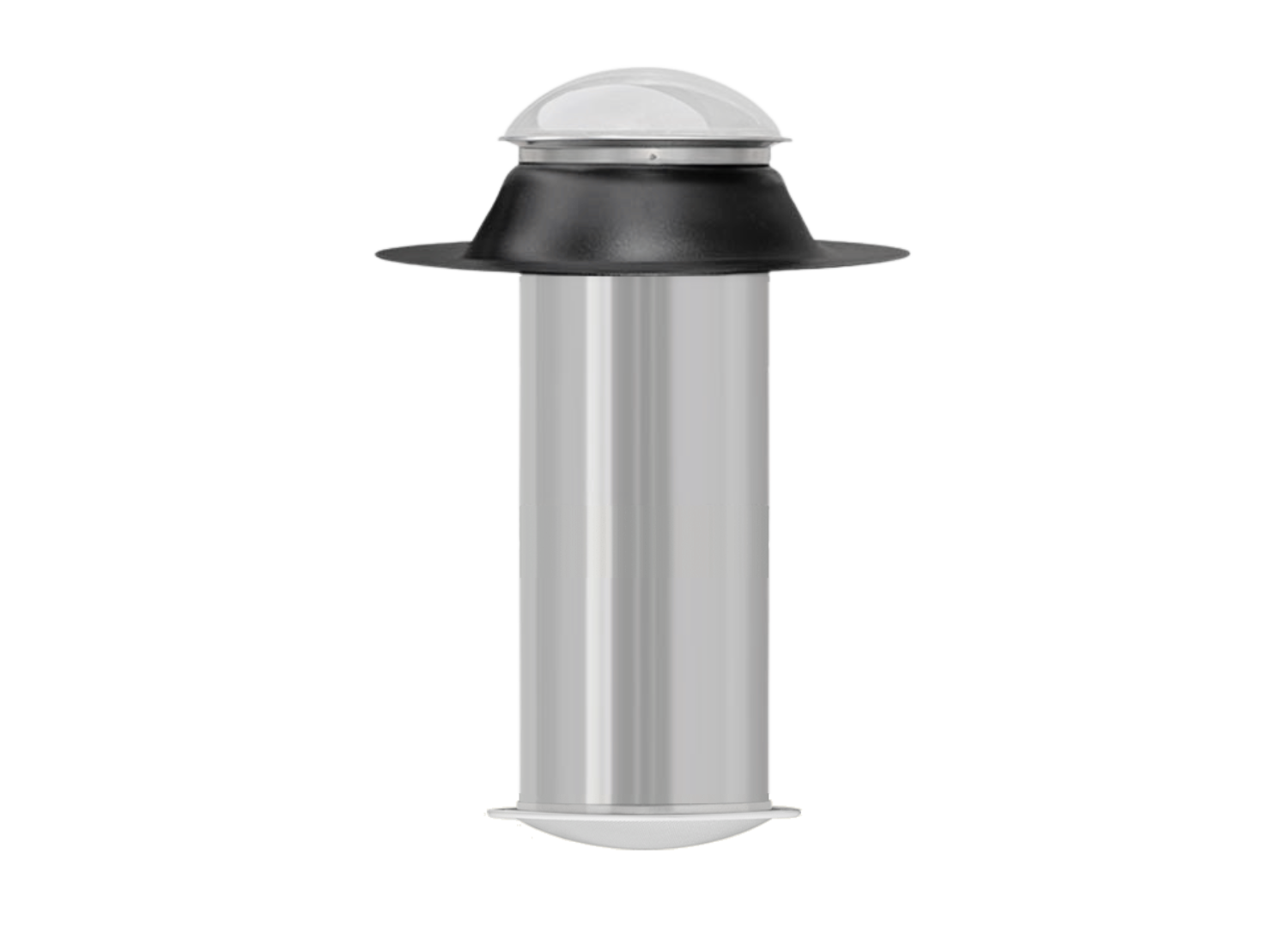

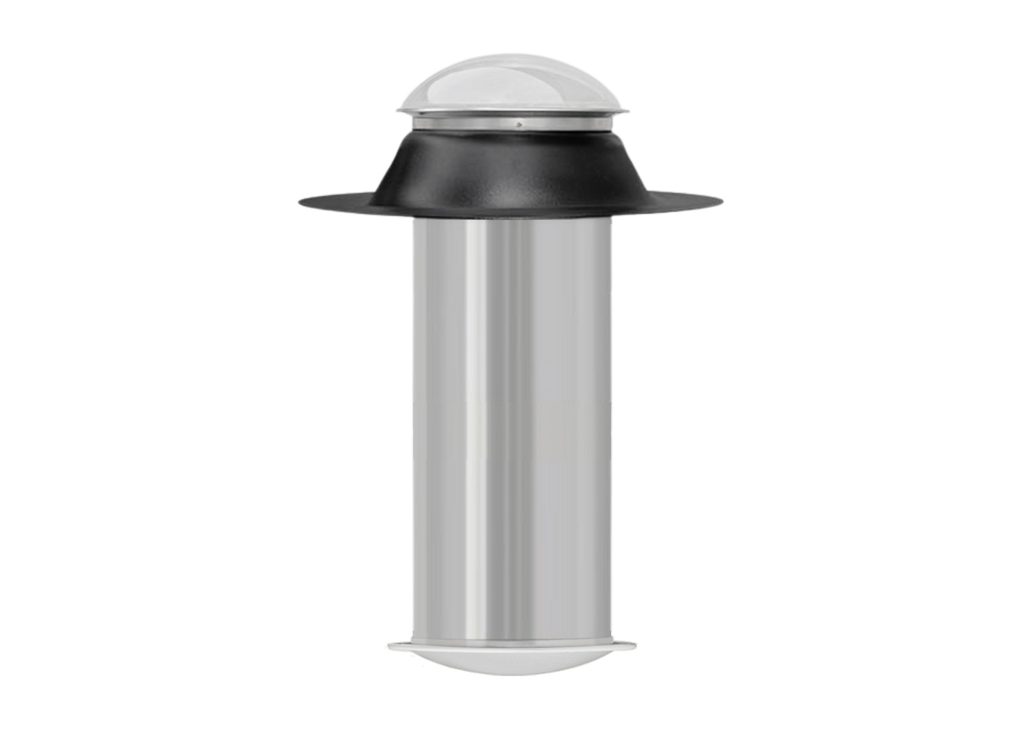

2. Flat roof mount. 5.5 inches (140 mm) high with a 4 inch (102 mm) flashing flange.

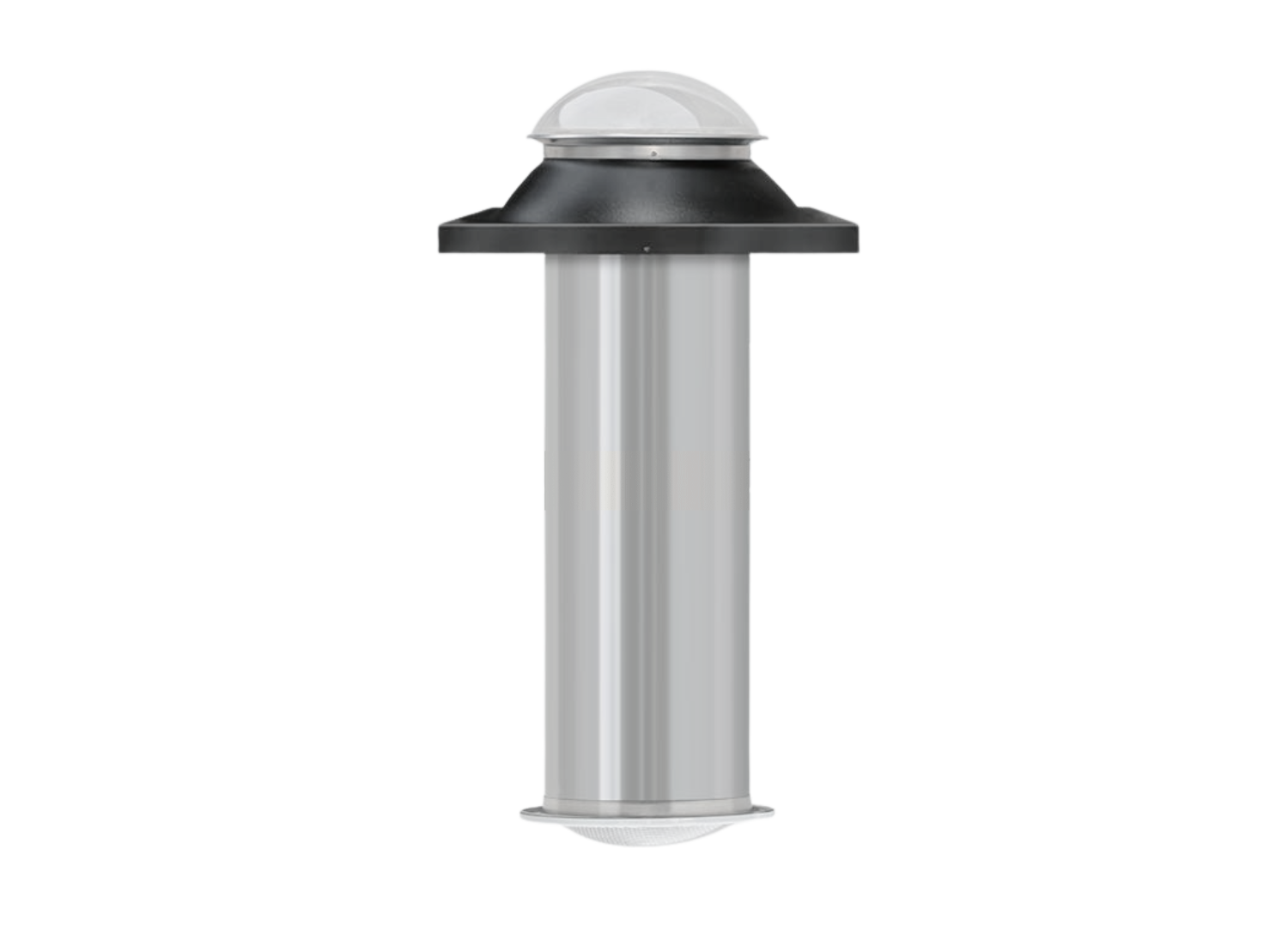

3. Curb mount. 22.375 inches (568mm) square curb with a 9.25 inches (235) rise and dome opening is 13.325 inches (339mm).
1c: Highly Reflective Light Pipe
13 inch (330 mm) diameter by 24 inches (610 mm) long. Alanod MIROSILVER with 98% total reflectance.
1d: Ceiling Trim Ring And Diffuser
100% impact modified; UV stabilized acrylic 13.25 inch (337 mm) diameter with snap in trim ring available in three options with snap in trim ring available in three options:
1. Prismatic
2. White
