10 Inch Tubular Skylights

1,925.00 AED

by Natural Light Energy Systems - USA

Description
Product Details

Jedan Energy offers high-quality tubular skylights, also known as sun tunnels or light tubes, that bring natural light into your home, office, warehouse, and more. Illuminate those hard-to-reach areas with our innovative solar tube technology.

1a: Acrylic Dome
100% impact modified, UV stabilized acrylic 11.6 inch (295mm) diameter and 3.75 inches (95mm) rise. Dome set in seamless aluminum collar 1 inch (25mm) high.

1b: Seamless Aluminum Flashing
Roof flashing made of seamless 1100 series aluminum .080 (2mm) inch thick. Dome opening 10.375 inch (263 mm) diameter.

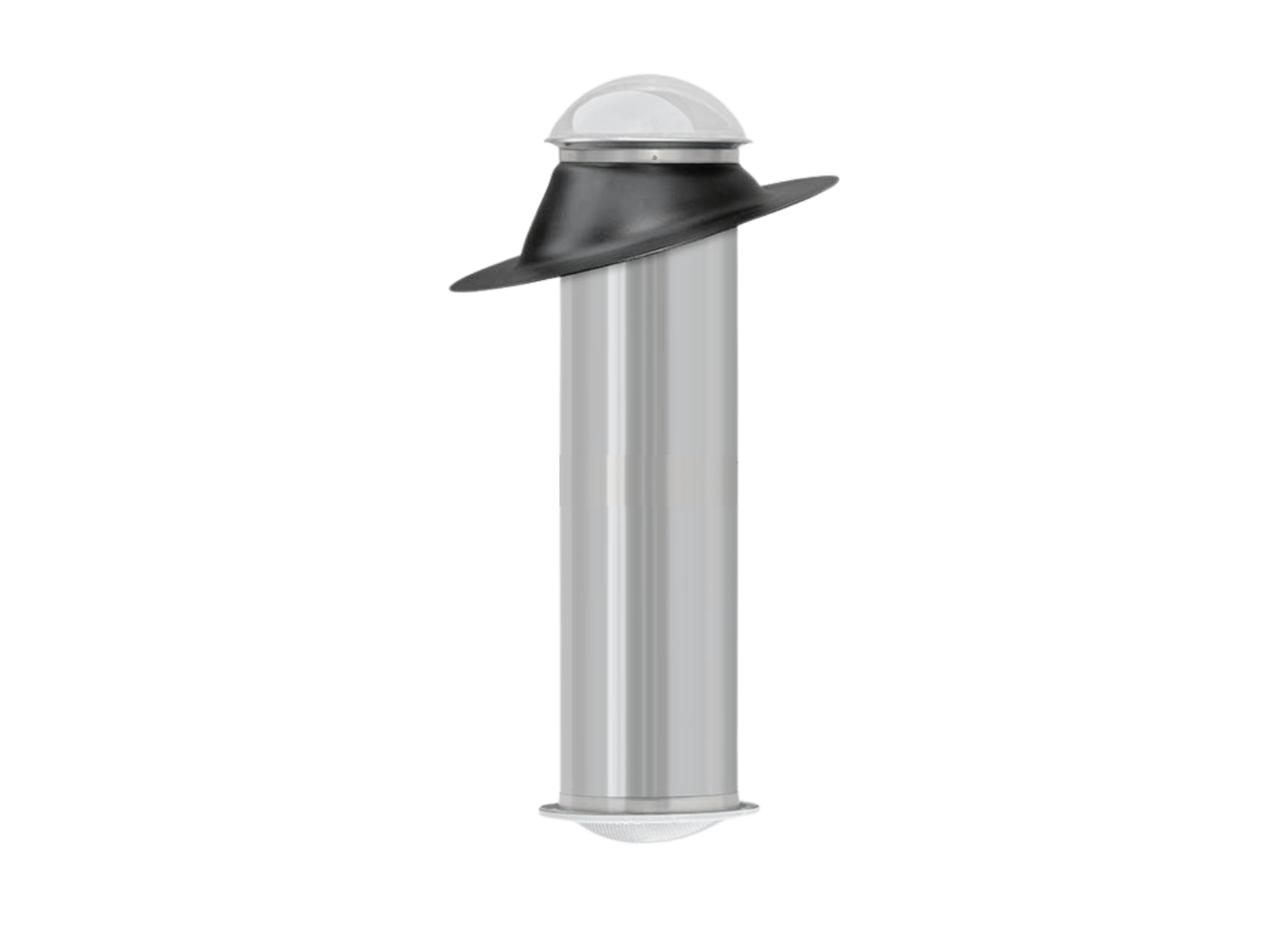

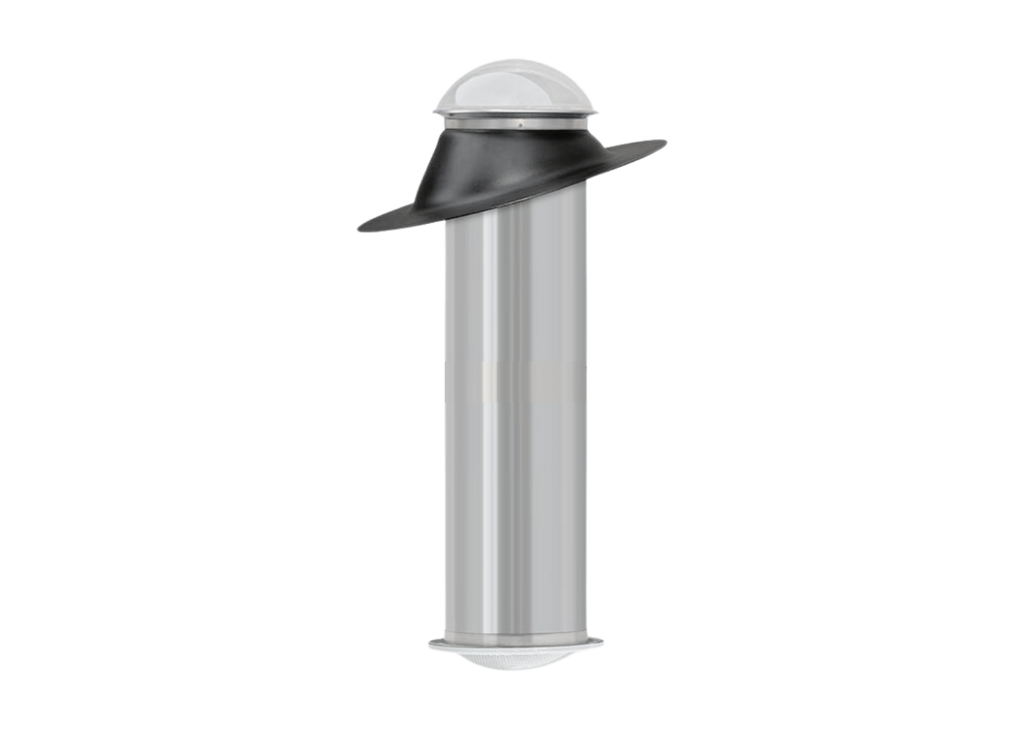

1. Sloped mount fabricated with a 4/12 (27 degree) slope. 6.75 inches (171 mm) high at low end, 4 inches (102 mm) high at high end with a 4 inch (102 mm) flashing flange.

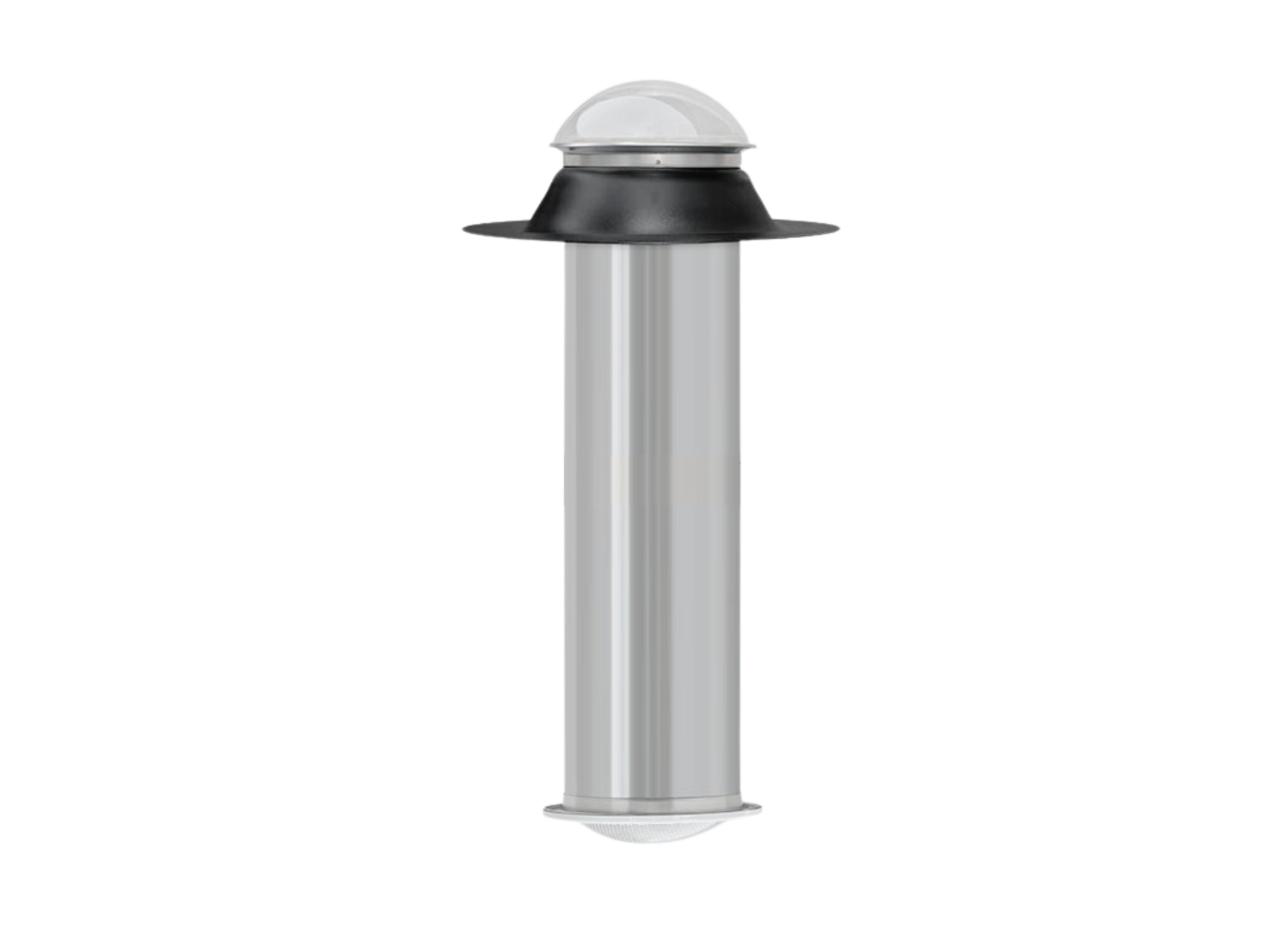

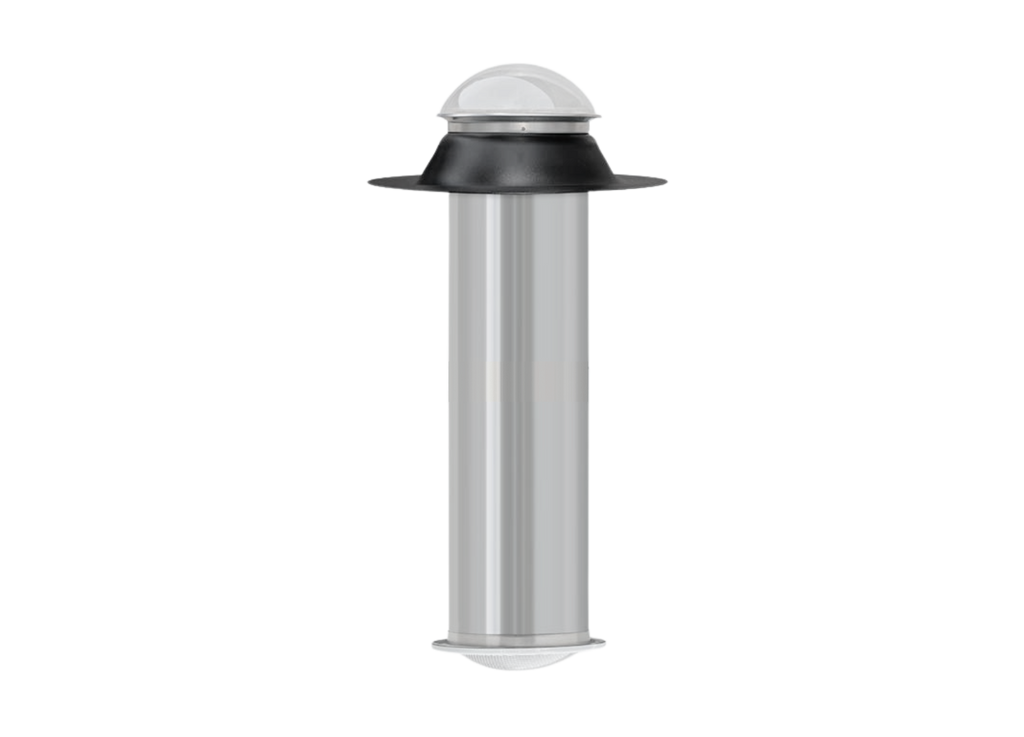

2 Flat roof mount. 5.625 inches (143 mm) high with a 4 inch (102 mm) flashing flange.

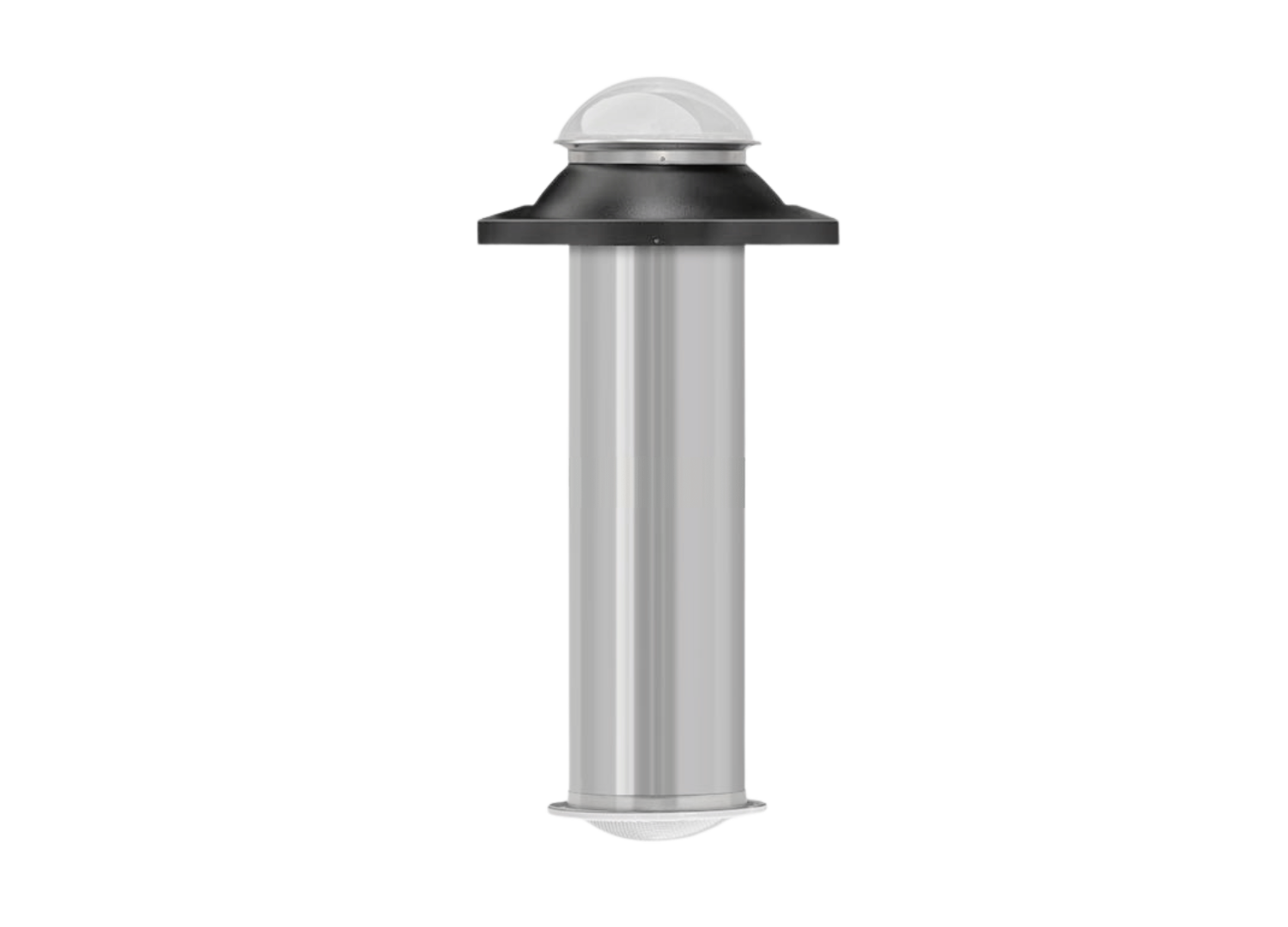

3. Curb mount. 18.75 inches (476mm) square curb with a 5.875 inches (149) rise and dome opening is 10.375 inches (264mm).

1c: Highly Reflective Light Pipe

10 inch (254 mm) diameter by 24 inches (610 mm) long. Alanod MIROSILVER with 98% total reflectance.

1d: Ceiling Trim Ring And Diffuser
100% impact modified, UV stabilized acrylic 10.25 inch (260 mm) diameter with snap in trim ring available in three options.

1. Prismatic.
2. White.

Light Output
Illuminates up to 150 sq. ft.
Equivalent of up to 300 watts

Performance Features:
May Qualify for Tax Credits
25 Year Product Warranty
Hurricane Tested/Approved
ICC-ES Listed

Common Application:
Bathrooms
Hallways
Entry Ways
Closets
Small Kitchens
Bedrooms
Laundry Rooms
Small Workspace
Hobby Rooms

Download Installation Sheet

Download Info Sheet

Option

For Quantities above 20 units please contact us on the below link.

Why Tubular Is A Better Choice than Traditional Skylights

There are several advantages to installing a tubular skylight versus a traditional skylight in your home or office. They are particularly a better choice for smaller spaces like closets, hallways, laundry rooms and pantries where installing a traditional skylight would not be practical.

Tubular Skylight Advantages

Emits more light

More energy efficient

Diffuses incoming light

Eliminates UV rays

Side by Side Photos

Installation Cutaways

Installation procedures vary between the curb mount and flat roof models. Pictured are typical installations for both mounting types including all components and hardware. Please follow the detailed instructions for your model and roof type.
