Light Output
Illuminates up to 150 sq. ft.
Equivalent of up to 300 watts
Performance Features:
May Qualify for Tax Credits
25 Year Product Warranty
Hurricane Tested/Approved
ICC-ES Listed
Common Application:
Bathrooms
Hallways
Entry Ways
Closets
Small Kitchens
Bedrooms
Laundry Rooms
Small Workspace
Hobby Rooms
1a: Acrylic Dome
100% impact modified, UV stabilized acrylic 11.6 inch (295mm) diameter and 3.75 inches (95mm) rise. Dome set in seamless aluminum collar 1 inch (25mm) high.
1b: Seamless Aluminum Flashing
Roof flashing made of seamless 1100 series aluminum .080 (2mm) inch thick. Dome opening 10.375 inch (263 mm) diameter.

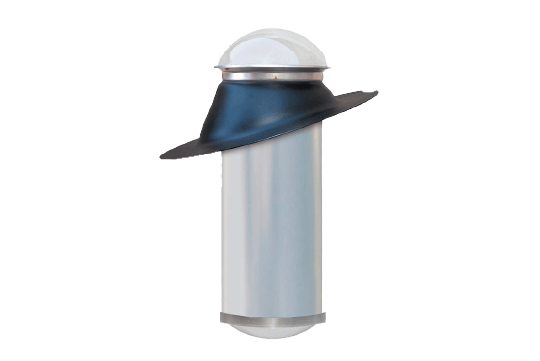

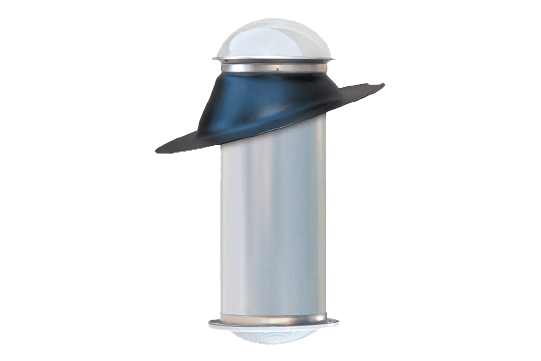

1. Sloped mount fabricated with a 4/12 (27 degree) slope. 6.75 inches (171 mm) high at low end, 4 inches (102 mm) high at high end with a 4 inch (102 mm) flashing flange.

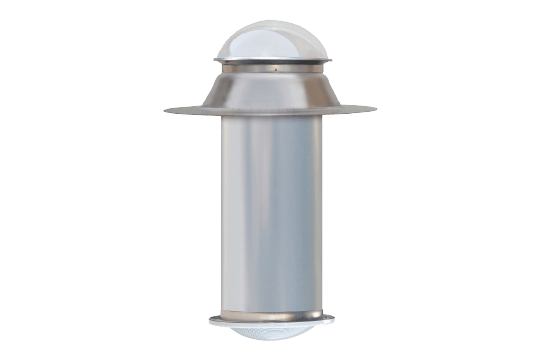

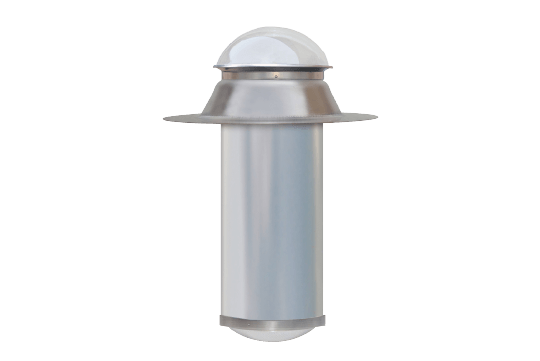

2 Flat roof mount. 5.625 inches (143 mm) high with a 4 inch (102 mm) flashing flange.

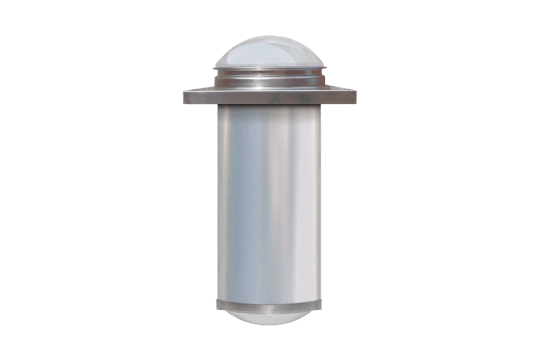

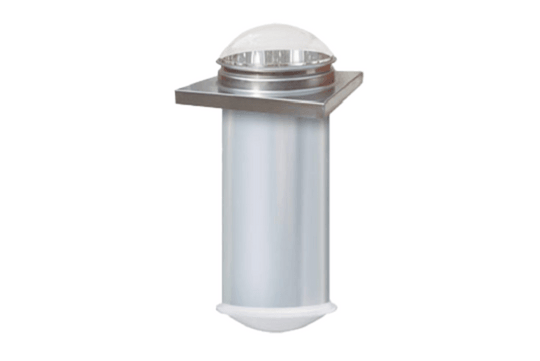

3. Curb mount. 18.75 inches (476mm) square curb with a 5.875 inches (149) rise and dome opening is 10.375 inches (264mm).
1c: Highly Reflective Light Pipe
10 inch (254 mm) diameter by 24 inches (610 mm) long. Alanod MIROSILVER with 98% total reflectance.
1d: Ceiling Trim Ring And Diffuser
100% impact modified, UV stabilized acrylic 10.25 inch (260 mm) diameter with snap in trim ring available in three options.
1. Prismatic.
2. White.
